Description

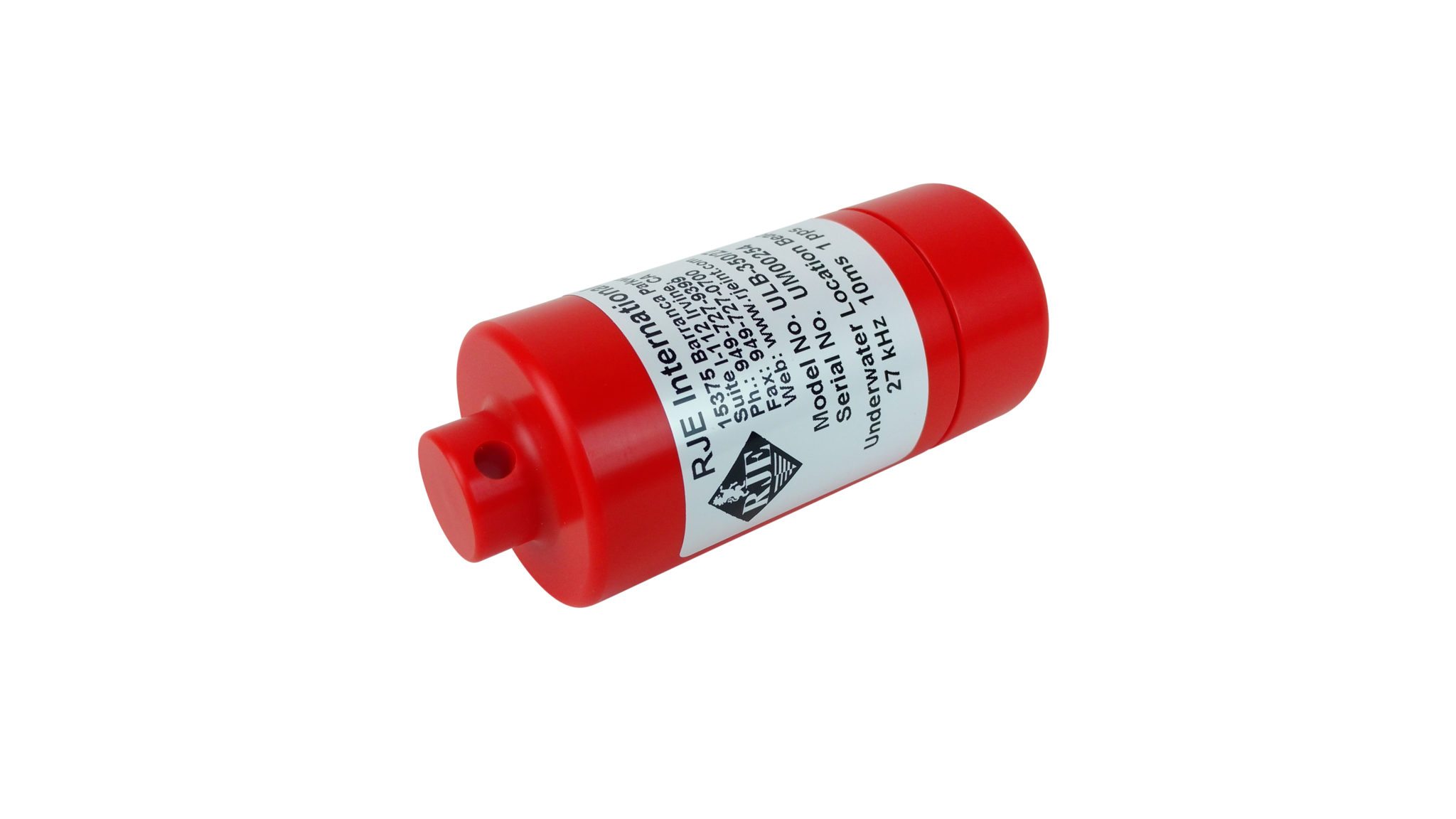

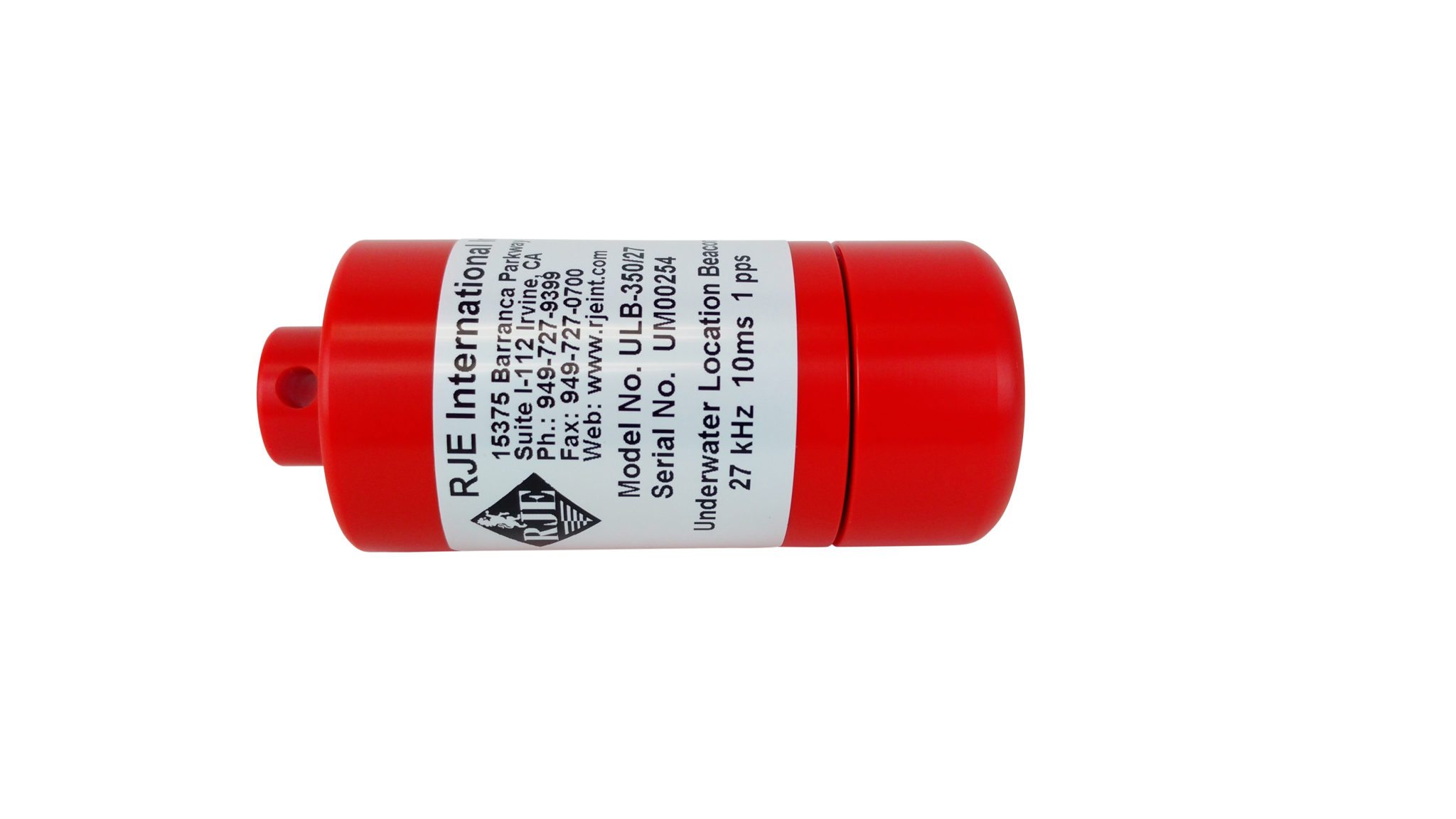

This underwater beacon is a cost effective free-running pinger used for marking equipment and underwater sites to depths of 1,200m. Using a single 9-volt battery, the ULB-350 can send a continuous acoustic signal for up to 60 days or on a programmed time delay for up to three months.
With flexible features that can be tailored to your needs, the ULB-350 is ideal for applications where size and weight are an issue.
Operating Frequency
27, 37, and 45kHz +/- 1kHz
Acoustic Output
163dB at 1 meter, minimum
Pulse Repetition Rate
1 Pulse Per Second (Adjustable)
Pulse Length
5 ms (Adjustable)
Activation
Water Switch with Programmable Time Delay
Power Source
9 V Alkaline or Lithium Batter
Operating Life
30 days minimum with Alkaline Battery
60 days minimum with Lithium Battery
Operating Depth
4000 Feet (1,216m)
Weight
8.5 oz
Housing Material
HDPE
Dimensions
Length
4.5 in (11.4cm)
Diameter
2.0 in (5.0cm)
Specifications are subject to change without notice.

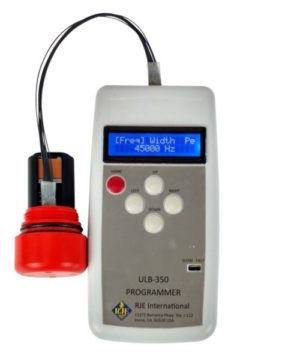

ULB-350 Programmer
Description
The ULB-350 Programmer gives you the ability to change the operating parameters of the ULB-350 underwater location beacon as well as expand its capability. Pulse length, repetition rate and activation time delay can be set by using the ULB350/PRG. Portable and easy to use, the programmer is powered by either the provided AC power adapter or a 9-volt battery.
Program ULB-350 Repetition Rate from 1 Pulse every second to 1 Pulse every 30 seconds
Program ULB-350 Pulse Length User from 5 – 50ms
Program ULB-350 Activation Time Delay from 1 second to 90 days
Power: AC Power Adapter or 9-volt Battery
Activation: On/Off Switch
Display: LCD
Dimensions:
Length – 7″ (18cm)
Width – 4.5″ (11cm)
Height – 1.25″ (3cm)
