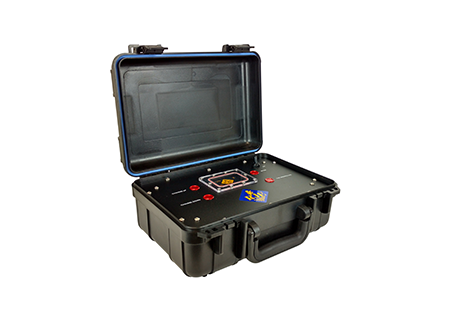

STI-350 Surface Acoustic Receiver

Description

This rugged directional receiver provides range and bearing to the ATT-400 series of transponders or acoustic pingers operating from 25kHz to 45kHz.

Designed for small boat operations, the STI-350 uses a directional hydrophone and adjustable staff assembly to locate underwater locations or targets marked with an acoustic beacon or ATT-400 transponder.

Passive Mode

Receiver Bandwidth

8 to 45kHz in 100Hz increments

Active Mode

Transmit Frequency

26kHz

Receive Frequency

27,28,29,30,31,32,33, 34kHz

Acoustic Output

190dB

Acoustic Signal

Coded

System Range with ATT-400 Transponder

750 meters (2,461ft)

Transducer/Hydrophone

Directional

Display

LCD

Graphic User Interface

Range or Signal Strength, Bearing Indicator to Target, Channel Indicator, Low Battery

Control Switches

Sealed Switches

Battery

Rechargeable

Operational Life

6 hours

Pole Assembly

3m Length

Cable Assembly

6m with connectors

Housing

Waterproof to IPX4

Size

28cm(L) x 25cm(W) x 13cm(H)

Weight

In Air: 4.3kg (9.5lbs)
