TAC-300 Combat Swim Board

Description

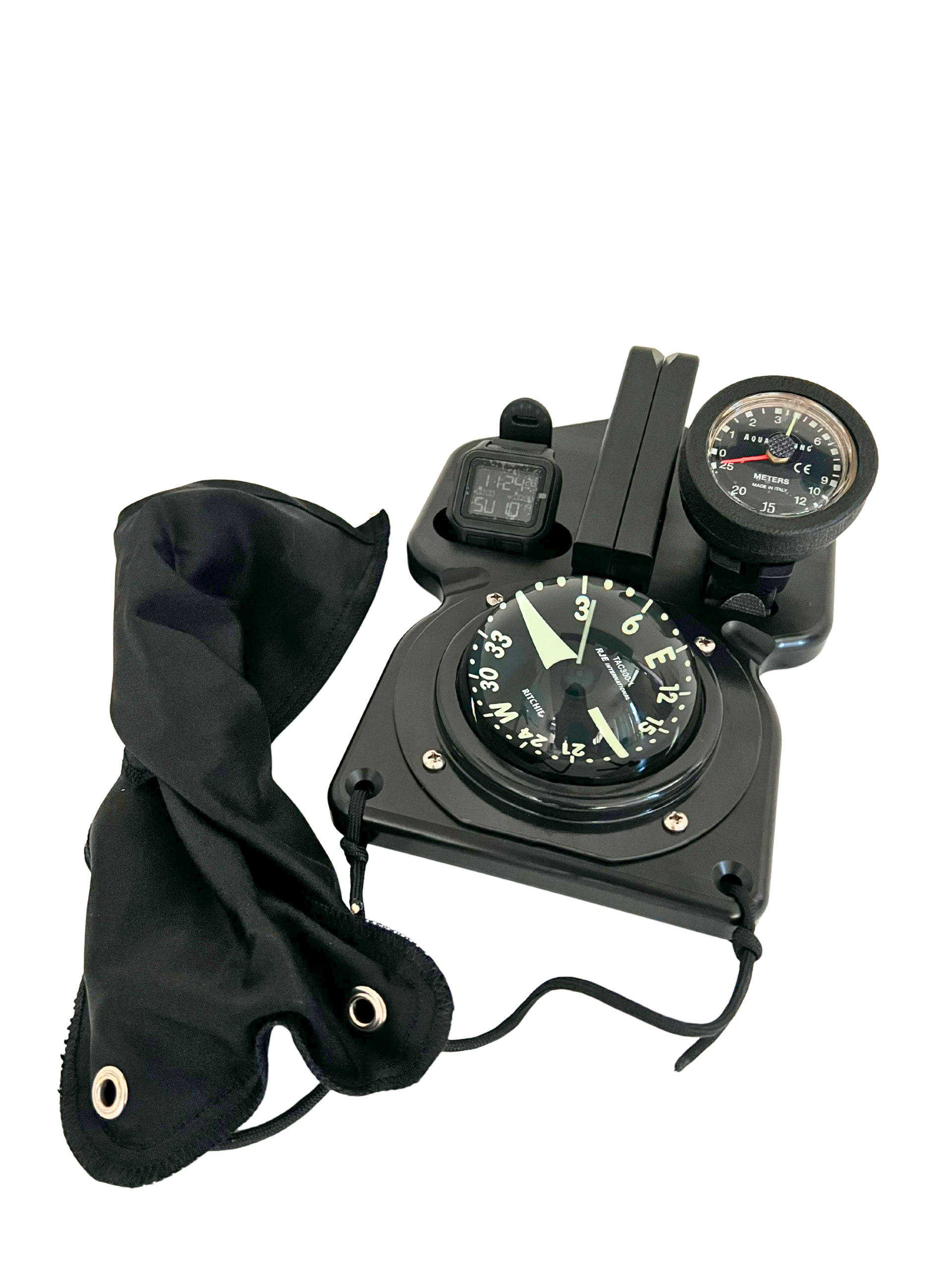

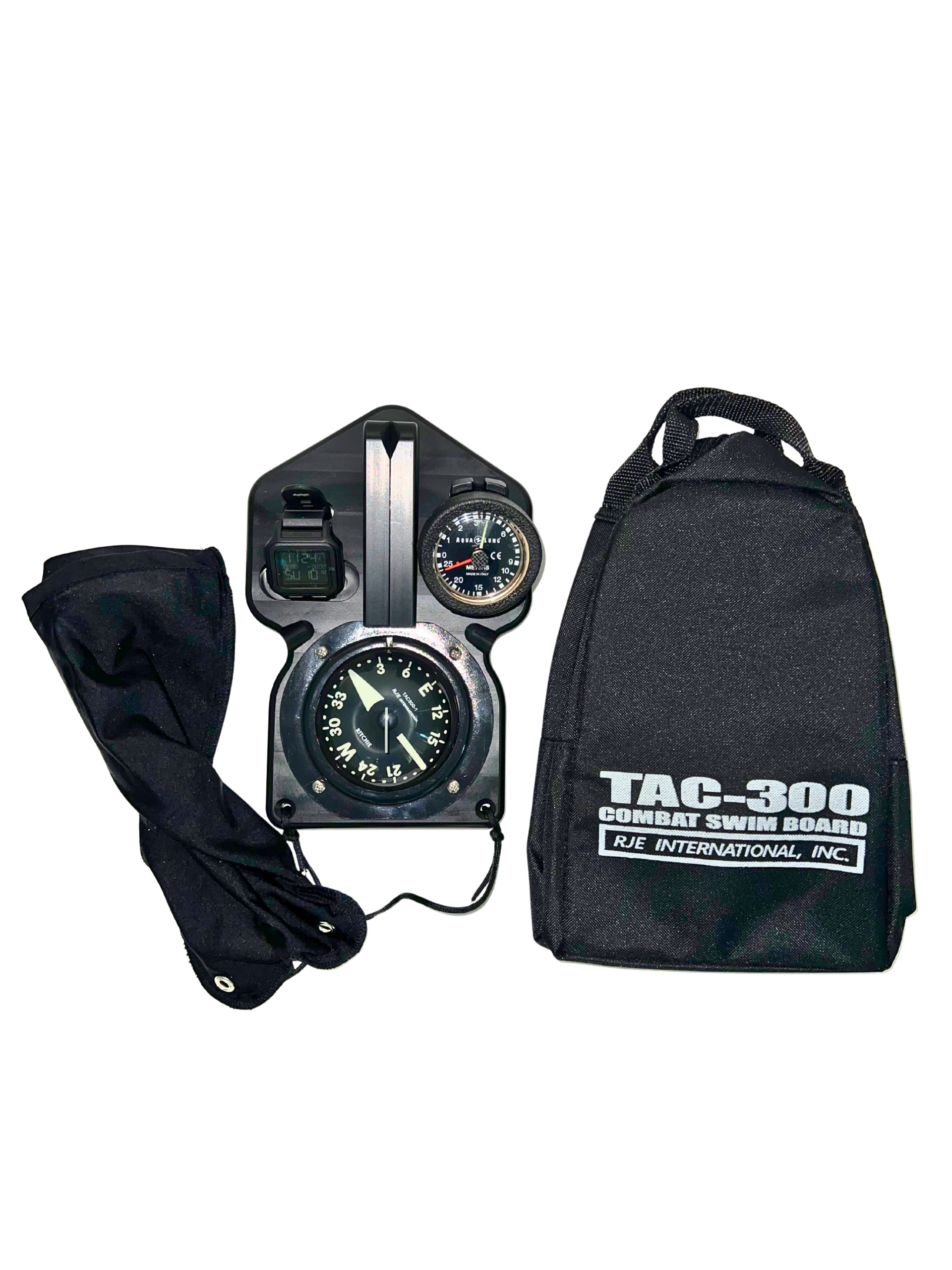

The TAC-300 is the latest in the TAC series of diver navigation designed for the U.S. Navy SEALS. Smaller and lighter than the TAC-100 and TAC-200 models, the TAC-300’s highly accurate compass and digital depth gauge/timer are built into a rugged plastic board with a protection sock.



Size of Board

10.25”L (26cm)
7.0”W (18cm)
3.0”H (7.5cm)

Total Weight in Air

2.7lbs (1.2kg)

Board Material

HDPE Plastic

Compass Illumination

Electronic “V-Lite”

Underwater Compass

Compass Card Bearings

10 Degrees Markings

Compass Card Illumination

Luminous Bearings Marks

Illumination

Up to 6 Hours

Compass Card Tilt

25°

Size

3.25”Dia (82.55mm)
2.0”H (51.00mm)

Weight in Air

8oz (227g)

Depth Rated

230ft (70m)

Dive Chronometer

Casio G-Shock Watch with Lap Timer

Digital Depth Gauge and Timer

Depth Range

0-330ft (0-100m)

Depth Tolerance

+/- 1% of Full Scale

Depth Resolution

0.1ft/0.1m

Display

Red OLED

Dive Timer Tolerance

±1%

Leg Timer Functions

Start / Pause / Reset

Timer Duration

99 hours max

Battery

Rechargeable Lithium

Battery Life

300 charges

Operational Life

16 hours

Operating Temperature

29°F – 95°F (-2°C – 42°C)

Housing

Anodized Aluminum

Depth Rated

330ft (100m)

Dimensions

2.0” x 2.0” x 1.0”
(50mm x 50mm x 25mm)

Specifications are subject to change without notice.
